Noise suppression measures for steps

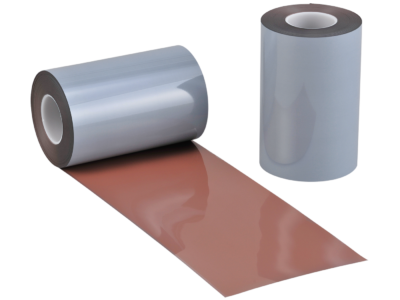

Shielding film for Rigid FPC (high step)

WILMINA®
SF-PC®6000-U1N/U1-US
SF-FT®6010-US-C/SF-FT®6015-US-C

Overview

With the introduction of 5G, which enables high capacity, low latency, and multiple simultaneous connections, a time when various things will be wirelessly connected is drawing near. In the automotive industry, sensors and other electronic components are expected to increase as autonomous driving technology improves. As a result, noise suppression measures have become increasingly important. SF-PC6000-U1/U1N offers the same shield performance as the standard product (SF-PC5600-C).It is compatible with high steps by eliminating the shielding layer (silver deposition).

  • ● Structural drawing of the SF-PC5600-C

  • ● Structural drawing of the SF-PC6000 Series/SF-FT6000 Series

  • Structural drawing of the SF-PC6000-U1/U1N
    Structural drawing of the SF-PC6000-U1/U1N
  • ● Reliability test (SF-PC6000-U1N/ left at high temperature (125℃) for 2,000 hours)

    • Joint resistance value
      Joint resistance value
    • Peeling strength
      Peeling strength

* Above data and numerical values are all actual measurement values, not guaranteed values.
