High-Flexibility Shielded FPCs
EMI Shielding Film for High-Speed FPCs
(High Bending Durability)

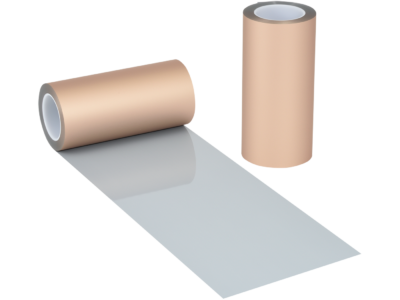

WILMINA®
SF-FT®8905 -C
Overview
As foldable smartphones and wearable devices become more widespread, flexible printed circuits (FPCs) must withstand repeated bending while maintaining reliable electrical performance. EMI shielding films used in these applications must also offer excellent bending durability and effective shielding performance for high-speed signal transmission. TATSUTA’s WILMINA® SF-FT®8905 -C is a high-flexibility EMI shielding film designed to meet these requirements. It combines excellent bending durability with high-frequency electrical performance, making it suitable for FPCs in devices subject to repeated bending.
● MIT Folding Test Results
-
-
MIT Folding Test Conditions
- Clamping jaw radius: 0.38 mm
- Folding angle: ±135°
- Folding speed: 175 cycles/min
- Load: 500 gf
- Detection method: Electrical continuity monitoring to detect breaks in the shielding film.
SF-FT®8905 -C achieved approximately 25,000 folding cycles in the MIT folding test, demonstrating excellent bending durability compared with conventional TATSUTA shielding films.
Examples of Use
● SF-FT®8905 -C combines excellent high-frequency electrical performance with enhanced bending durability. It is well suited for foldable smartphones, wearable devices, and other compact electronic devices that require reliable EMI shielding under repeated bending.
