Peripheral material (non-conductive)

Black film for FPC

ST-100B

  • SP
  • PC/Tablet
  • AUTO
  • TV
  • Other

Product Overview

The commercialized protection layer part of the existing product (SF-PC5000 series) is this thin type black film. In such cases where you want to blacken the appearance colors of adherends, the same matte-black color as the existing product can easily be produced.

Features

  • Designability

    Contributes to improving the matte-black property with low glossiness.
  • Thinness

    Realizes thinness of 8μm in total thickness.
  • Solvent resistance

    Offers excellent solvent resistance.
Black film for FPC

Main specifications

Item ST-100B
Thickness Transfer film 50μm
Thickness Adhesion layer (after press) 8μm
Thickness Protection film 85μm
Peeling strength Over 3.0N/cm
Shelf life (keep cool) 6 months

Examples of Use

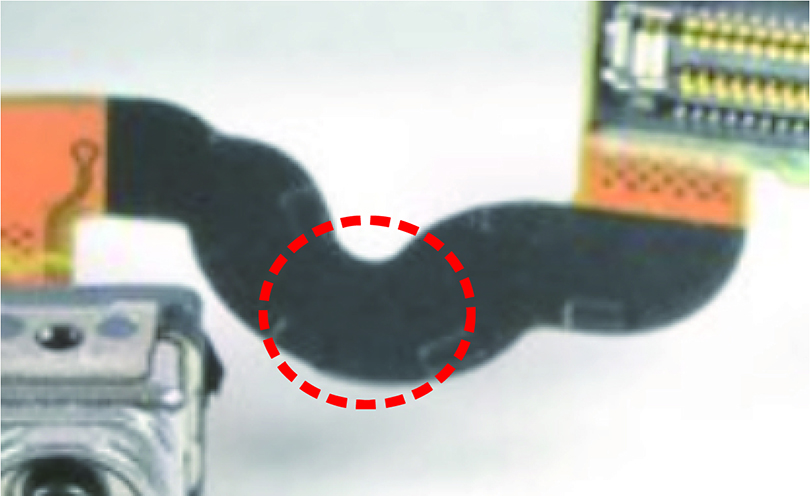

  • Contributing to heightening (blackening) the appearance colors of adherends (1)

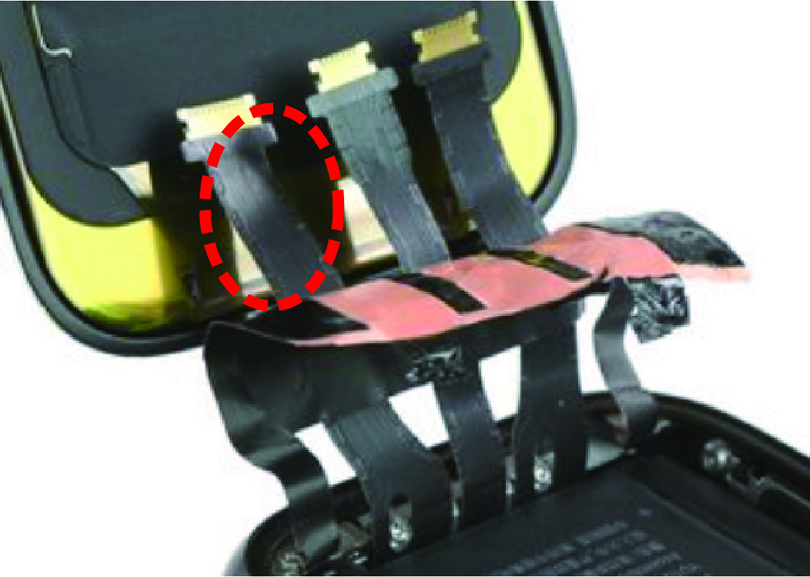

  • Contributing to heightening (blackening) the appearance colors of adherends (2)

Reference data

  • Peeling strength (reliability test)

    • ・Measurement of the adhesive strength with the PI surface of FCCL
    • ・Observation of the appearance (peeling interface)
    • ・Confirmed under environmental conditions of 60℃ x 95%Rh, 85℃ x 85%Rh, after 1,000 hours
    Peeling strength (reliability test)
  • Glossiness

    • ・Evaluation of surface glossiness
    • ・Sliding test conditions for glossiness

      • 1)In accordance with JIS K 5600-4-7
      • 2)Measuring method: Gloss checker
    ST-100B Ref
    (SF-PC5000)
    Glossiness at an angle of incidence of 60 degrees 9 10
    Glossiness
  • Solvent resistance

    • ・Durability evaluation of various solvents
    • ・Various solvents

      • 1)Acetone
      • 2)MEK
      • 3)Ethyl acetate
      • 4)Methanol
      • 5)IPA
    Solvent used Acetone MEK Ethyl acetate Methanol IPA
    Surface after testing Surface after testing Surface after testing Surface after testing Surface after testing Surface after testing
    Result No loss of color

* Above data and numerical values are all actual measurement values, not guaranteed values.
