EMI shielding film

Shielding film for high-speed signal transmission FPC (high shield performance/shape retention)

WILMINA®
SF-PC®3100-C
SF-PC®3300-C

  • SP
  • PC/Tablet
  • AUTO
  • TV
  • Other

UL94 V-0 (combined with Kapton50H)
* Kapton® is a registered trademark of DuPont in the U.S.

Product Overview

With the launch of the new 5G communication standard, the rapid spread of electronic devices capable of radio frequency/high-speed signal transmission is expected to explode. In connection with this, measures that suppress noise from inside and outside are essential for FPC used in such electronic devices. The SF-PC3100-C and SF-PC3300-C offers top-class shield performance among all TATSUTA products, and can be used as noise suppression measures in high frequency ranges.

Features

  • High shield performance and high-speed signal transmission capability

    ModelShield effectivenessInsertion loss
    1GHZ10GHZ1GHZ10GHz
    SF-PC3100-COver 100dBOver 110dBBelow 2dBBelow 8dB
    SF-PC3300-COver 80dBOver 90dBBelow 2dBBelow 8dB
  • Shape retention property

    For the SF-PC3100-C, 5.5μm RA Cu foil is adopted to suppress spring-back of FPC during and after incorporation of FPC.
Shielding film for high-speed signal transmission FPC (high shield performance/shape retention)

Main specifications

Item SF-PC3100-C SF-PC3300-C
Thickness Transfer film 50μm (transparent) 50μm (transparent)
Total thickness (after press)   20μm 17μm
Protection layer 5μm 6μm
Shielding layer 5.5μm 2μm
Anisotropic conductive adhesion layer 9μm 9μm
Peeling strength Over 3.0N/cm Over 3.0N/cm
Shelf life (keep cool) 6 months 6 months

Examples of Use

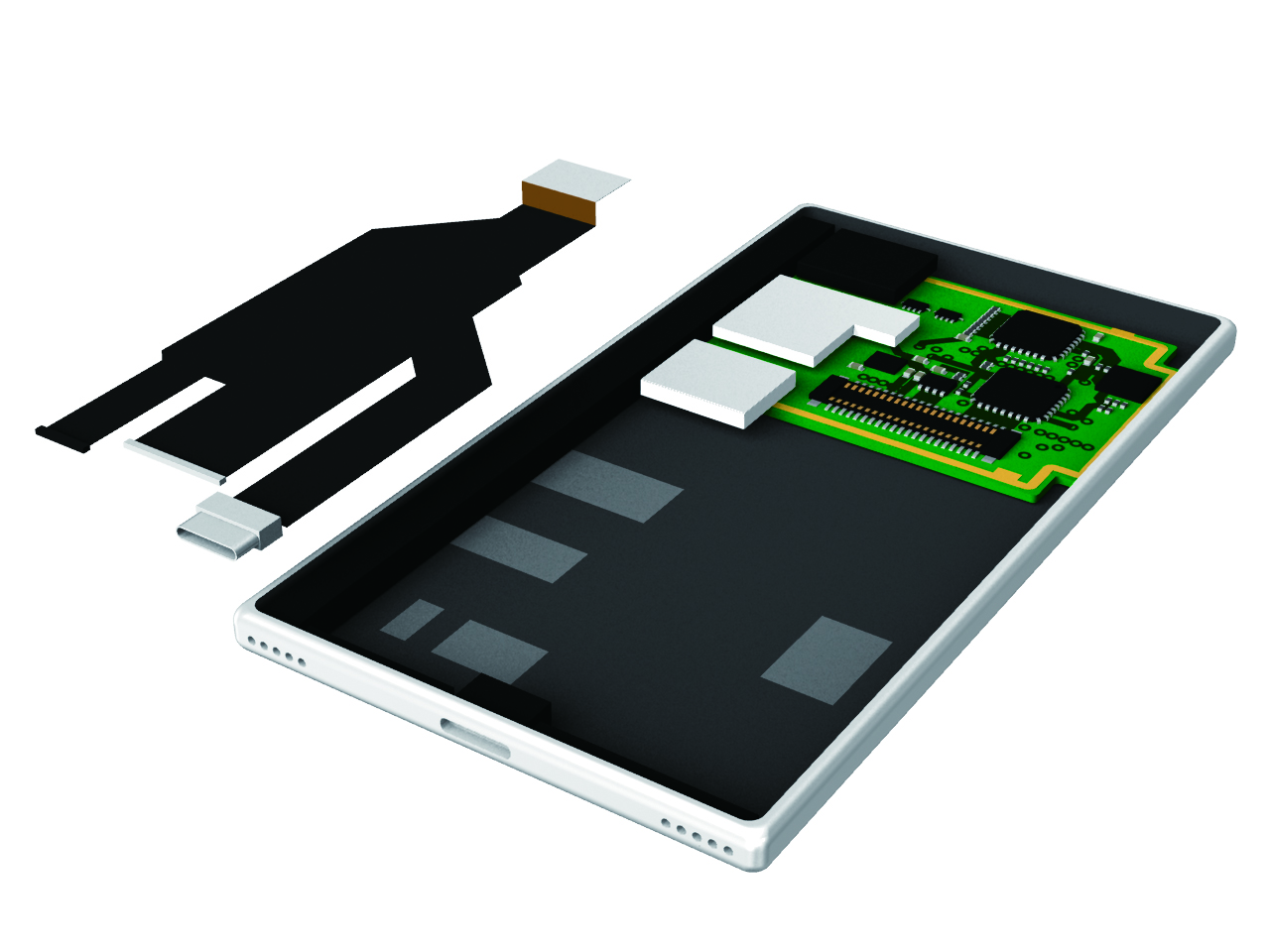

  • Capable of speeding up interfaces

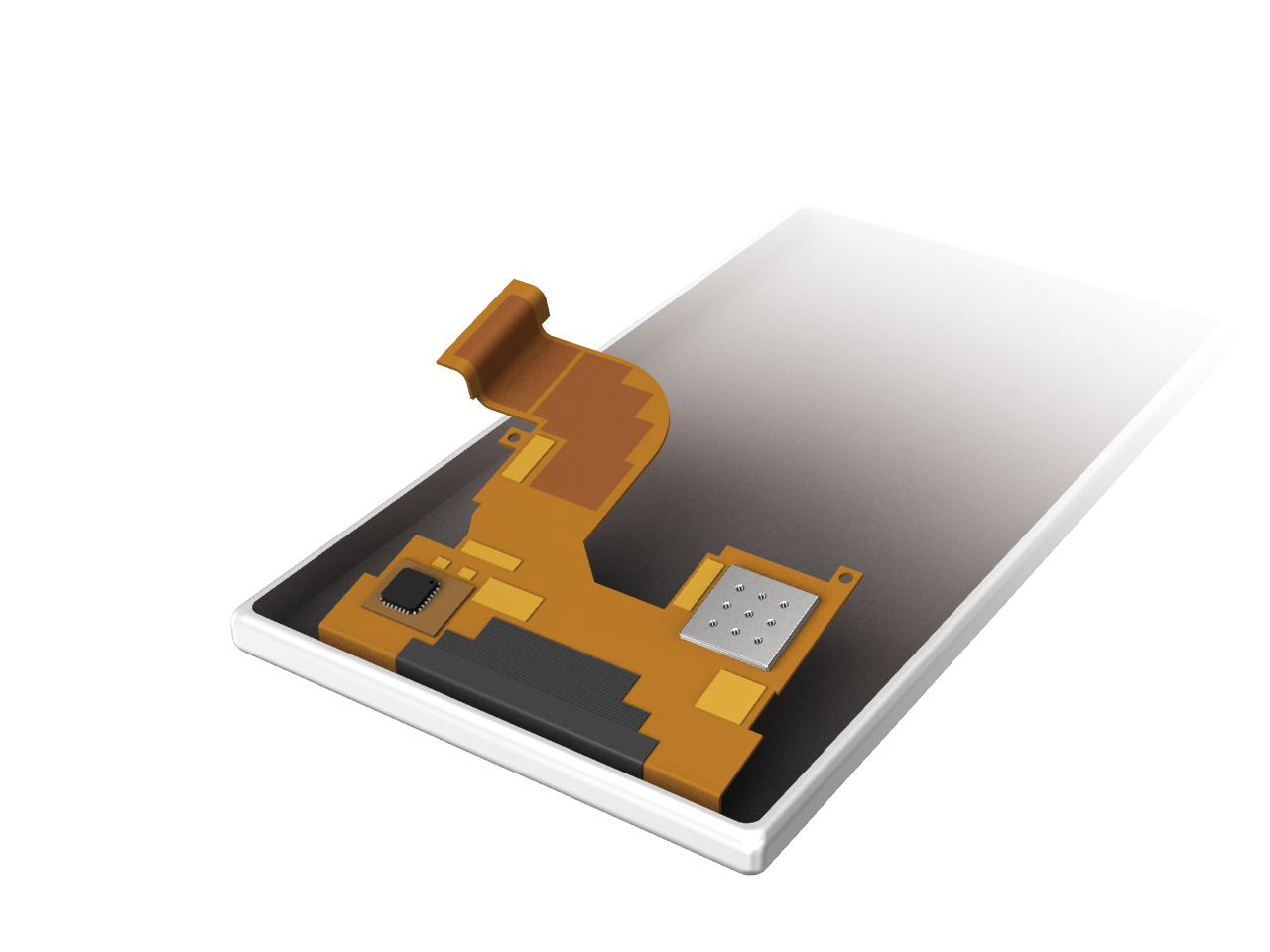

  • Suppresses the spring-back force of FPC with the shape retention property of the RA Cu foil shielding layer

Reference data

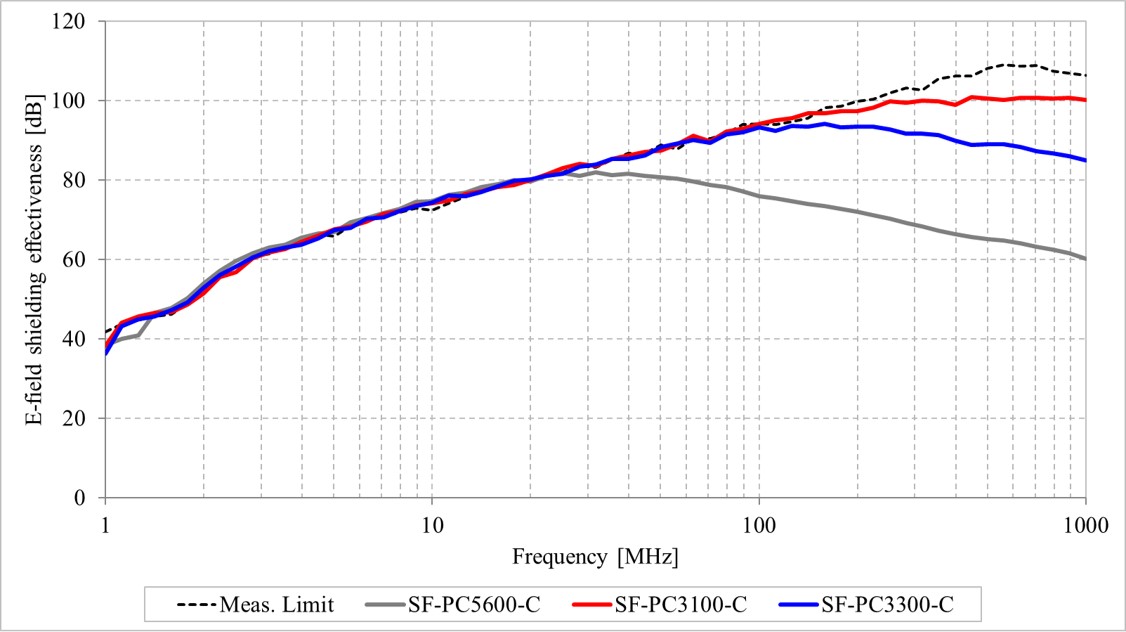

  • Electric near field shield effectiveness by KEC method

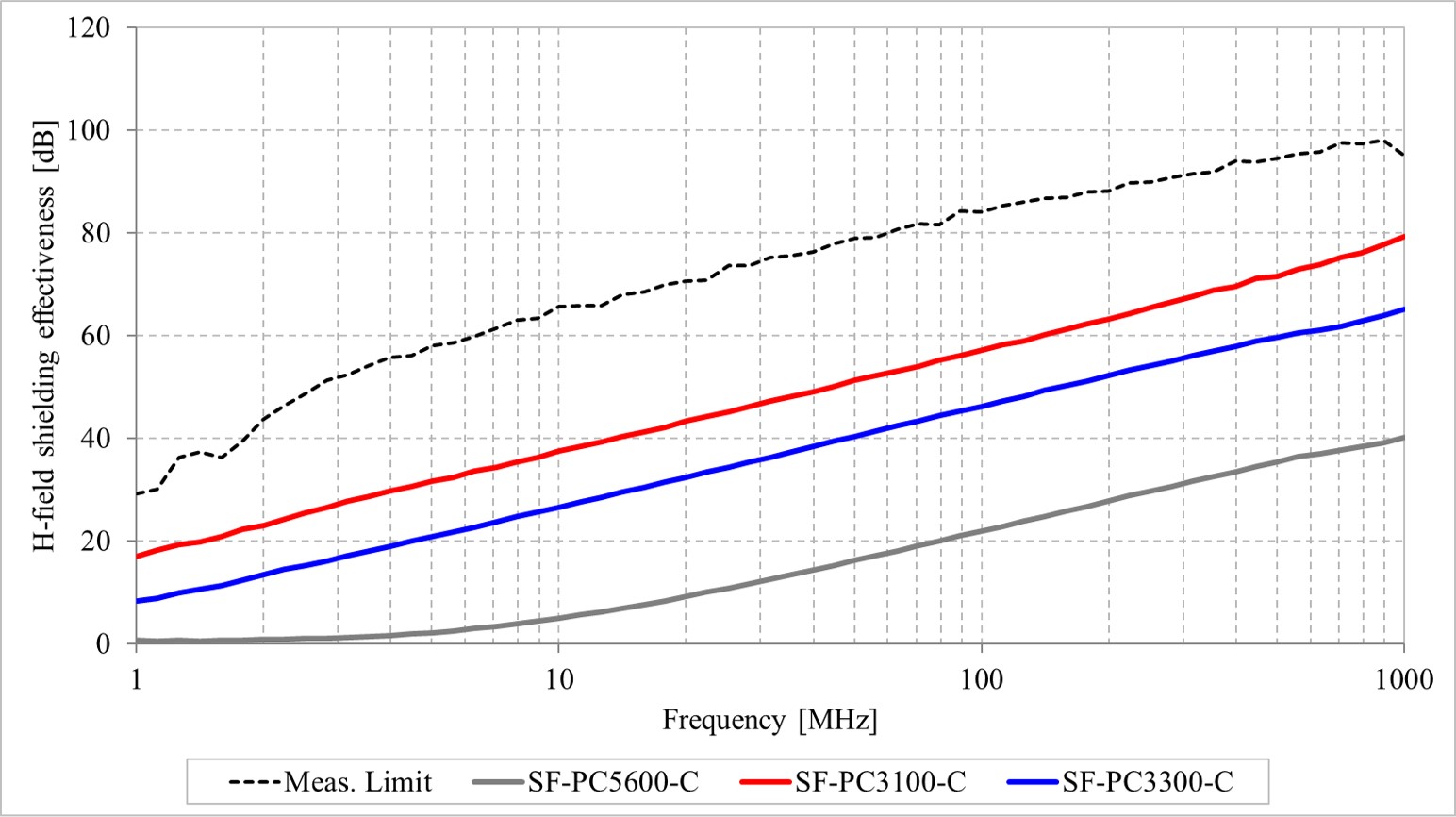

  • Magnetic near field shield effectiveness by KEC method

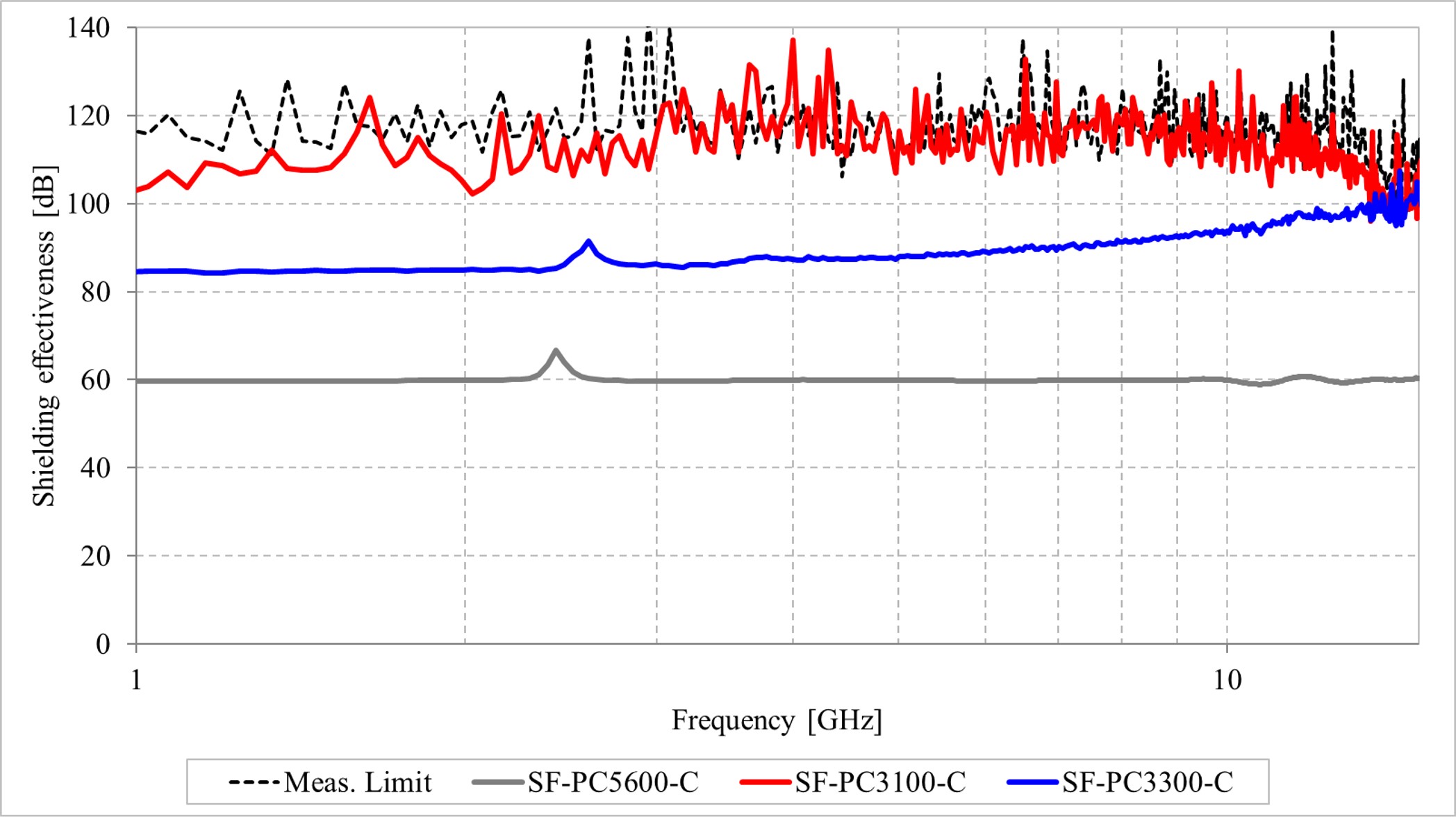

  • Shield effectiveness by coaxial tube method
    (7mm coaxial tube)

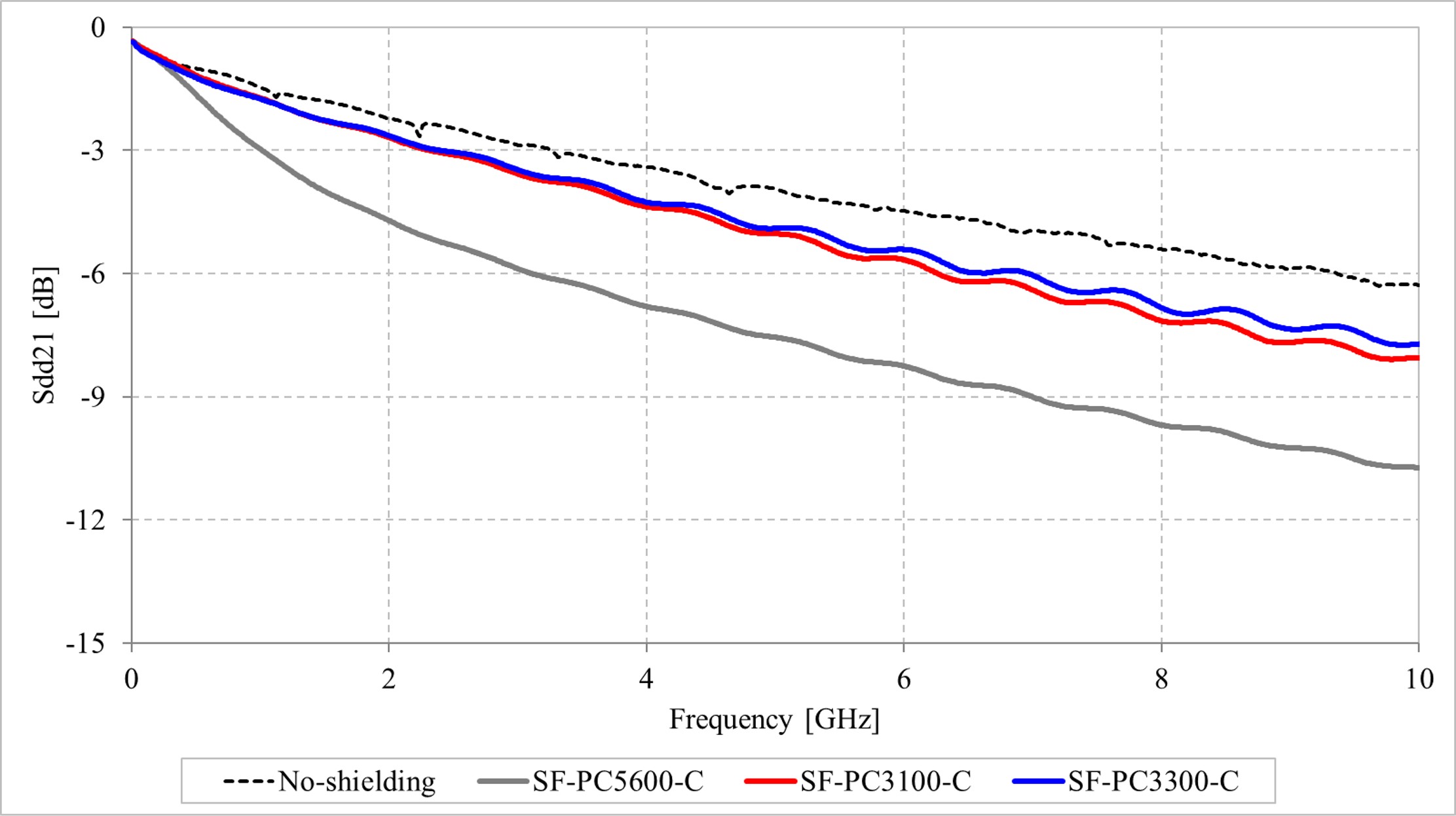

  • Insertion loss

* Above data and numerical values are all actual measurement values, not guaranteed values.
