EMI shielding film

Shielding film for FPC (high reliability)

WILMINA®
SF-HR5600-C

  • SP
  • PC/Tablet
  • AUTO
  • TV
  • Other

UL94 VTM-0 (combined with Kapton50H)
* Kapton® is a registered trademark of DuPont in the U.S.

Product Overview

In light of in-vehicle usage environments, use of a high heat resistance spec conductive adhesive has achieved stable joint reliability and peeling strength under high temperatures (125°C). Without changing the constitution of other materials from the existing standard product (SF-PC5600-C), the shield performance and workability are at the same level as existing products.

Features

  • Achieves stable joint reliability even under high-temperature environments

    Can be used even under harsh conditions, such as in-vehicle applications, because a stable joint resistance value and peeling strength are secured at 125°C in 1,000 hours.
  • Secures shield performance and workability the same as existing products

    Can be used with unchanged workability, securing shield performance (over 55dB/1GHz) at the same level as our existing standard product SF-PC5600-C.
Shielding film for FPC (high reliability)

Main specifications

Item SF-HR5600
Thickness Transfer film 57um
Total thickness (after press) 13um
Protection layer 5um
Shielding layer 0.1um
Anisotropic conductive adhesion layer 8um
Peeling strength Over 3.0N/cm
Shelf life (keep cool) 6 months

* A protection film for the adhesion layer is available as an option.

Examples of Use

  • Demonstrates its ability under high temperatures in in-vehicle applications, etc.

    Demonstrates its ability under high temperatures in in-vehicle applications, etc.

Reference data

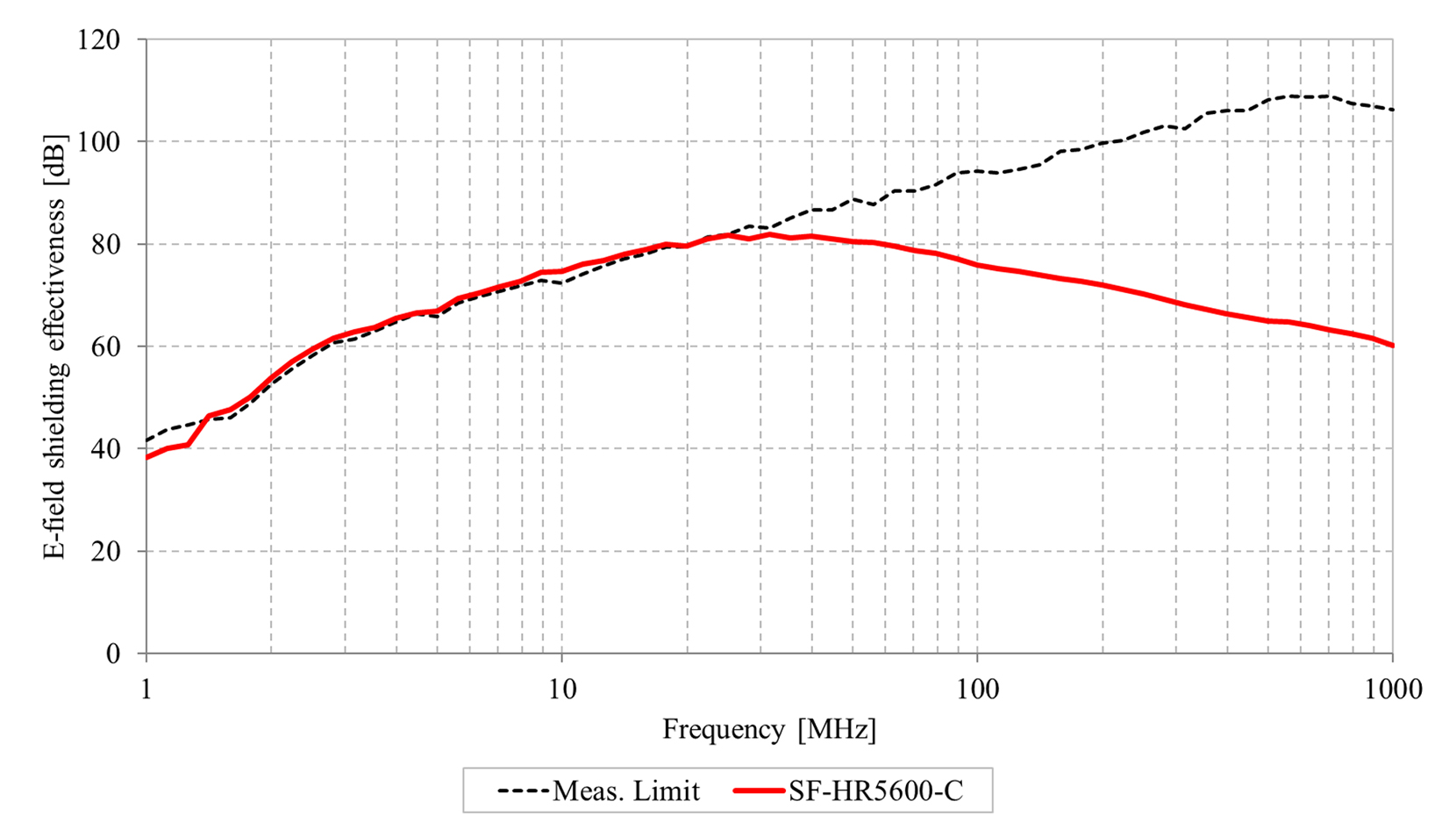

  • Electric near field shield effectiveness by KEC method

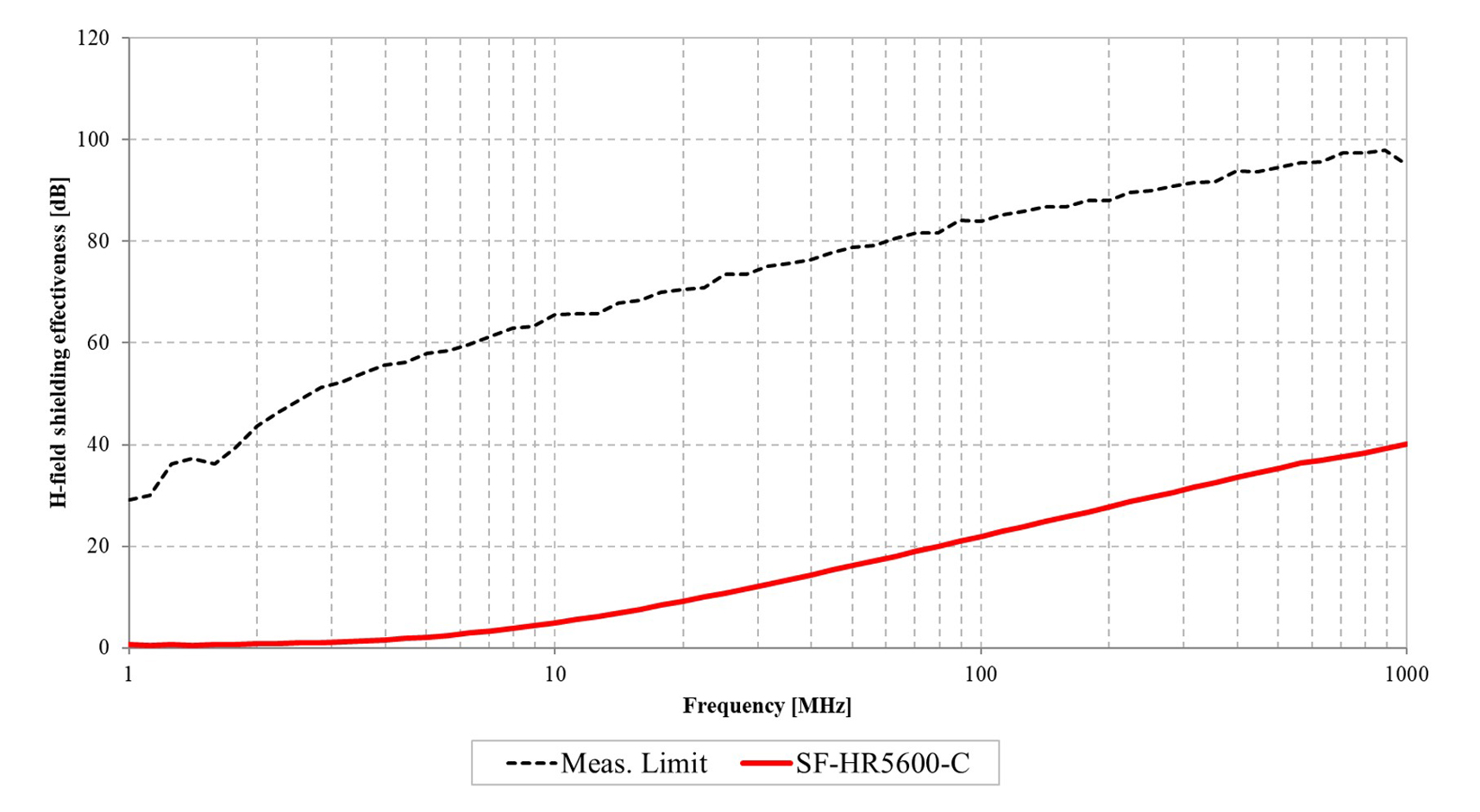

  • Magnetic near field shield effectiveness by KEC method

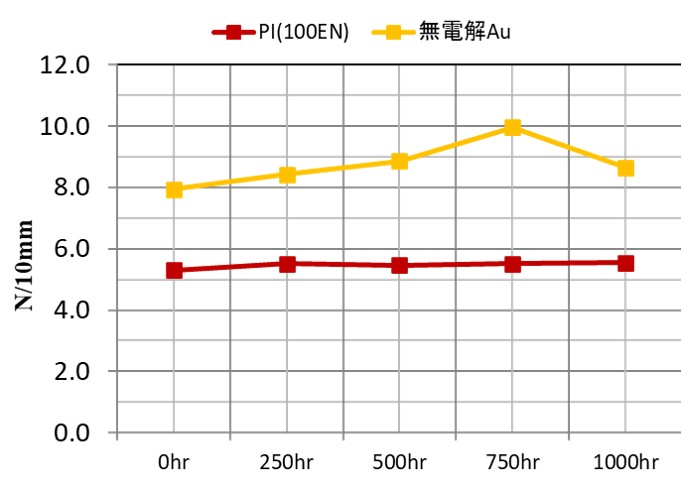

  • Peeling strength at 125℃

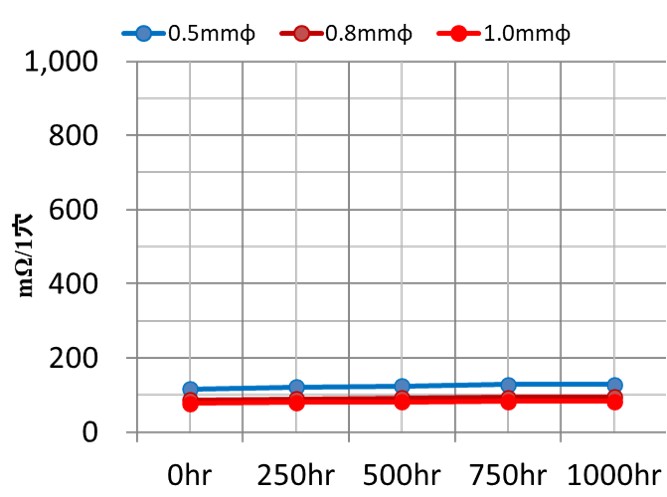

  • Joint resistance value at 125℃

* Above data and numerical values are all actual measurement values, not guaranteed values.
