UL94 SF-PC5600-C: V-0/SF-PC5900-C: VTM-0 (combined with Kapton50H)
* Kapton® is a registered trademark of DuPont in the U.S.
Product Overview
This product is synonymous with a shielding film used around the world. With the basic functions of a shielding film, it is resistant to OSP finish and is also UL-certified. Widely used in smartphones and other applications that require noise suppression, it is a product with a proven record of performance.
Features
-
The industry’s thinnest shielding film at 8μm in total thickness (SF-PC5900-C)
Offers optimum specifications for electronic devices pursuing thinness and lightness, including excellent bending and sliding properties. -
OSP resistance
Also compatible with OSP finish after processing the shielding film.
Main specifications
| Item | SF-PC5600-C | SF-PC5900-C | |
|---|---|---|---|
| Thickness Transfer film (white) | 57μm | 57μm | |
| Total thickness (after press) | 15μm | 8μm | |
| Protection layer | 5μm | 5μm | |
| Shielding layer | 0.1μm | 0.1μm | |
| Anisotropic conductive adhesion layer | 10μm | 3μm | |
| Peeling strength | Over 3.0N/cm | Over 3.0N/cm | |
|
Shelf life (keep cool) |
6 months | 6 months | |
* A protection film for the adhesion layer is available as an option.
Examples of Use
-
As adopted for a variety of applications, it offers a proven record of performance and unrivaled reliability.
Reference data
-
Electric near field shield effectiveness by KEC method
-
Electric near field shield effectiveness by KEC method
-

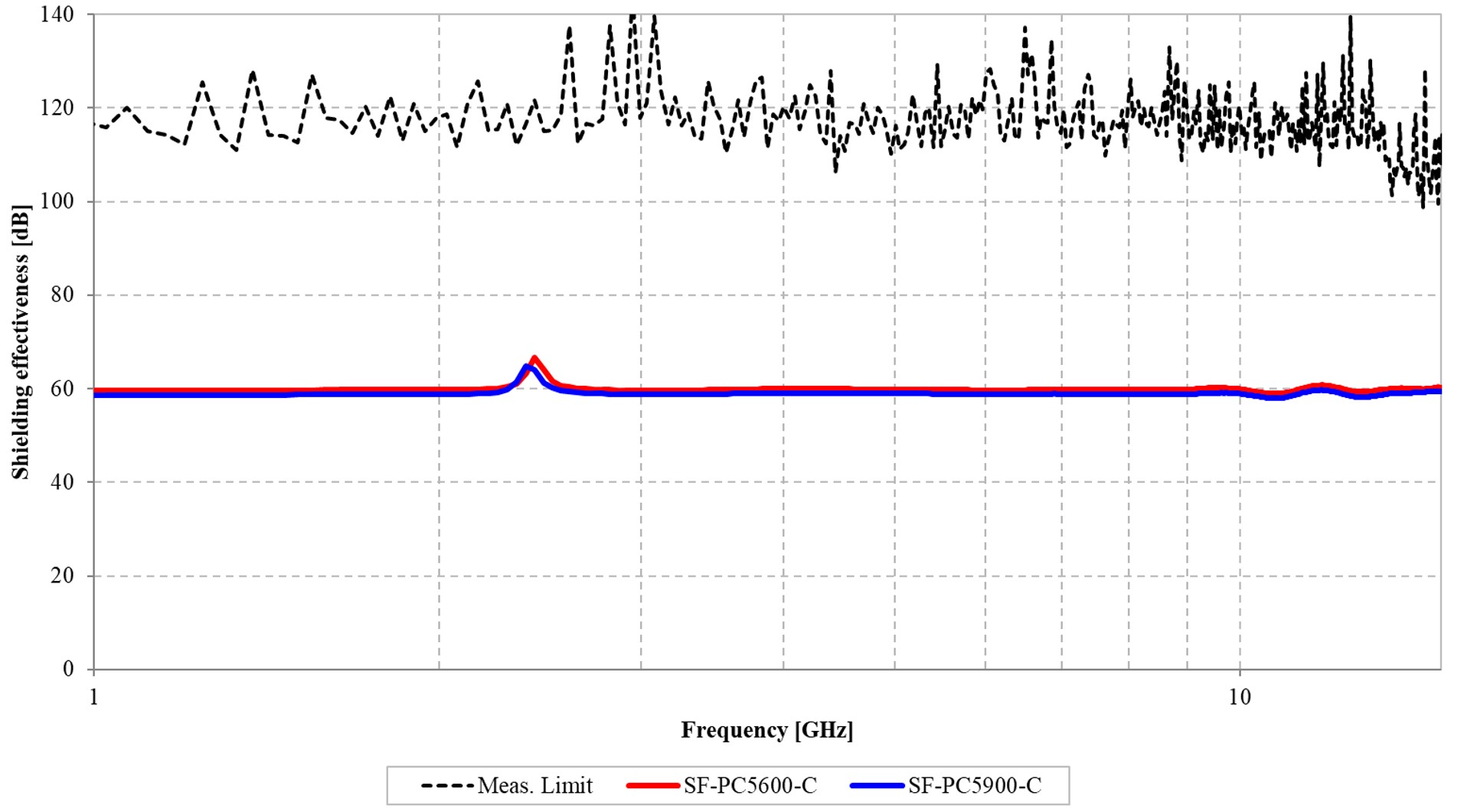

Shield effectiveness by coaxial tube method (7mm coaxial tube)
-

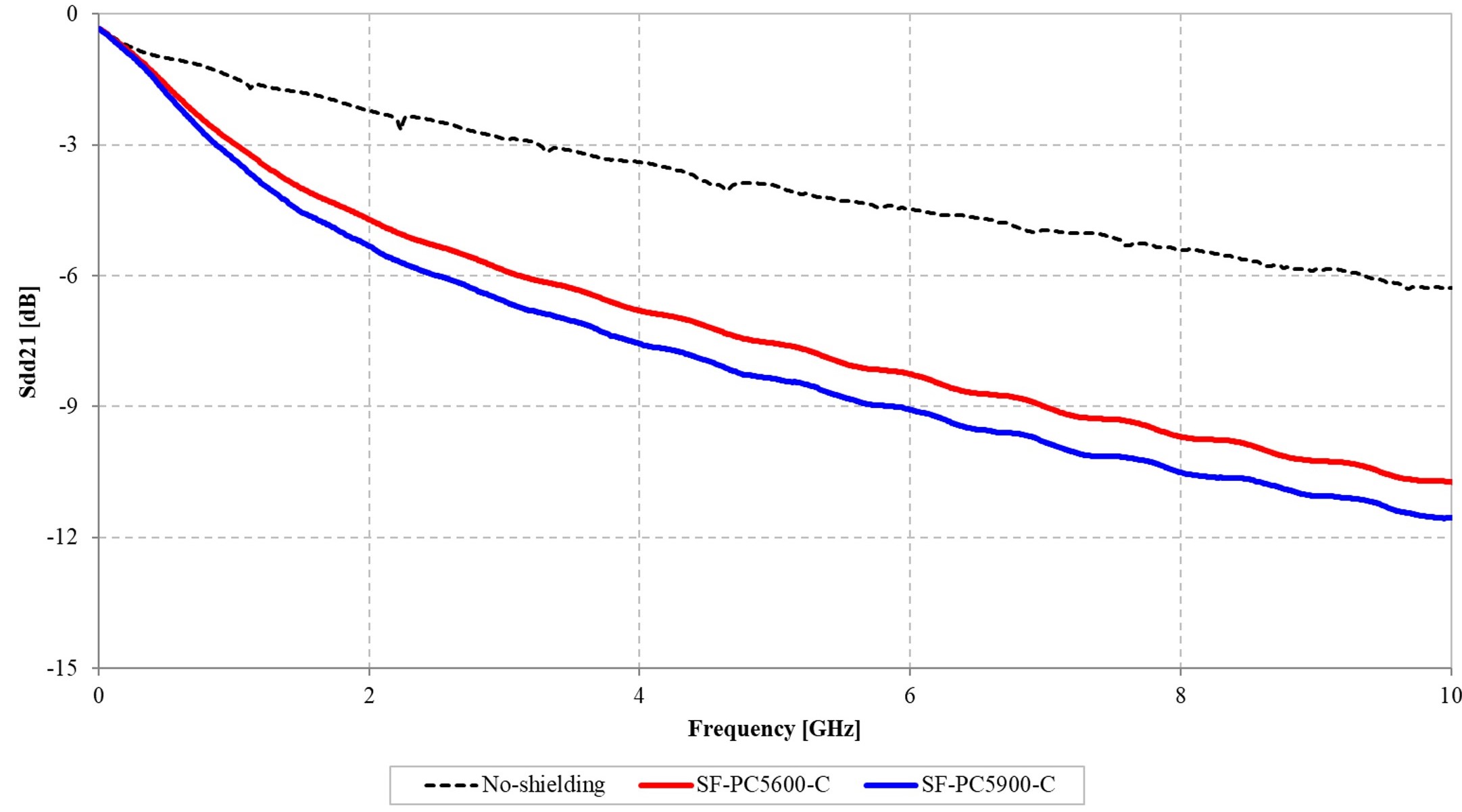

Insertion loss data
* Above data and numerical values are all actual measurement values, not guaranteed values.
